circulation blower fan air circulation fan for industrial eto sterilizer

Name: circulation blower fan air circulation fan for industrial eto sterilizer
Brand: bocon
Price: 3 USD

China circulation blower fan air circulation fan for industrial eto sterilizer wholesale

Type : Axial Flow Fan

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Construction works

Customized support : OEM

Electric Current Type : AC

Mounting : Other

Blade Material : Stainless Steel

Place of Origin : Zhejiang, China

Brand Name : bocon

Model Number : HMQ-F

Voltage : 220v

Warranty : 1 Year

After-sales Service Provided : Online support, Engineers available to service machinery overseas

Material : SUS304 Stainless Steel

note : NO MOQ ,fast delivery

Application : eto sterilizer

power : 2KW

Pressure : -1.0bar~+3.0bar

Installation : Wall Mounted Blower

Usage : Industry Avaliable

Air flow : 1800m3/h

MOQ : 1 Set

Certification : Other

Packaging Details : wooden packing,pallet

Port : Shanghai

Supply Ability : 70 Set/Sets per Month

Price : $3,000.00 - $4,000.00/Sets

Contact Now

Product Description

Product Application

used in the internal circulation of sterilizers.

SPECIFICATIONS
_{basic parameters}	material	shell	stainless steel (304)
	material	impeller	stainless steel explosion-proof treatment/pure aluminum
	Maximum wind pressure	Pa	1260
	Rated air flow	m3/h	1500-3500
	Pressure	bar	-1.0bar~+3.0bar

circulation blower fan air circulation fan for industrial eto sterilizer

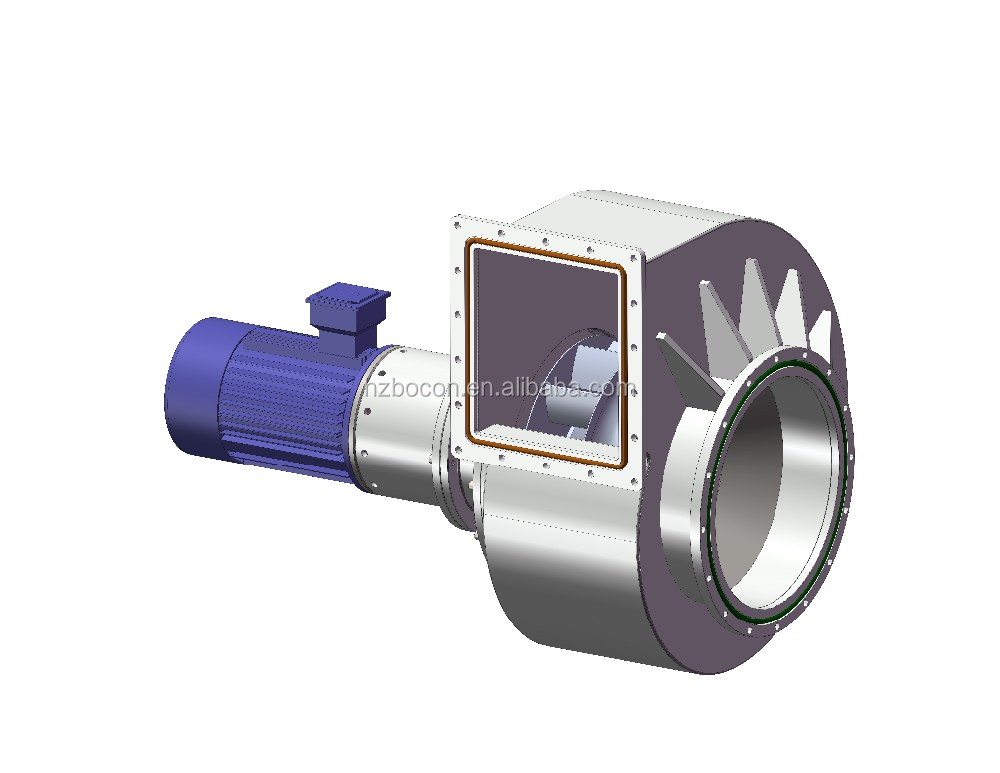

Detailed Images

Specification I：
Whole model：BF-32A-154P

Fan model：B4-72A-3.2A

Transmission model：BCL-154P

Rated air flow（M3/h）：884-1758

Maximum wind pressure Pa：324-198

Drive parameters：B5-90L/1.5KW-4P/AC380V/1450RPM

Material: 304 stainless steel shell, impeller is pure aluminum;

Pressure：-1.0bar~+3.0bar

Specification II：

Whole model：BF-32A-222P

Fan model：B4-72A-3.2A

Transmission model：BCL-222P

Rated air flow（M3/h）：1688-3517

Maximum wind pressure Pa：300-792

Drive parameters：B5-90L/2.2KW-2P/AC380V/2800RPM

Material: 304 stainless steel shell, impeller is pure aluminum;

Pressure：-1.0bar~+3.0bar

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	one set
Weight	150kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

25 m3 EO sterilizer'

92% Response Rate

20 m3 EO sterilizer siding doors

88% Response Rate

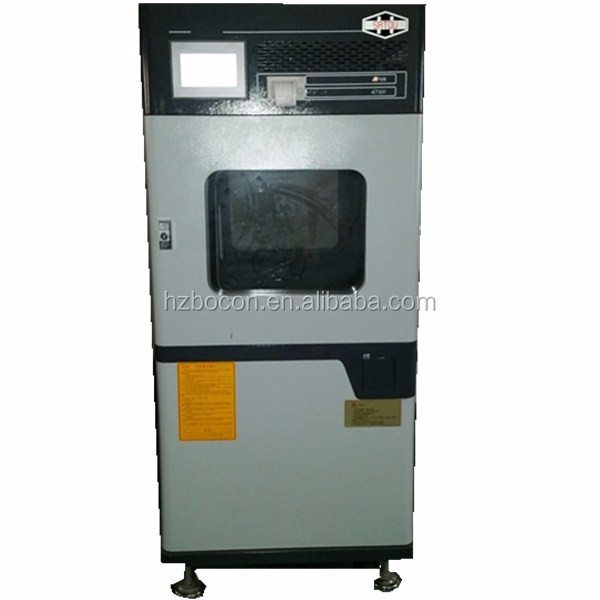

150L tabletop sterilizer

75% Response Rate

partners

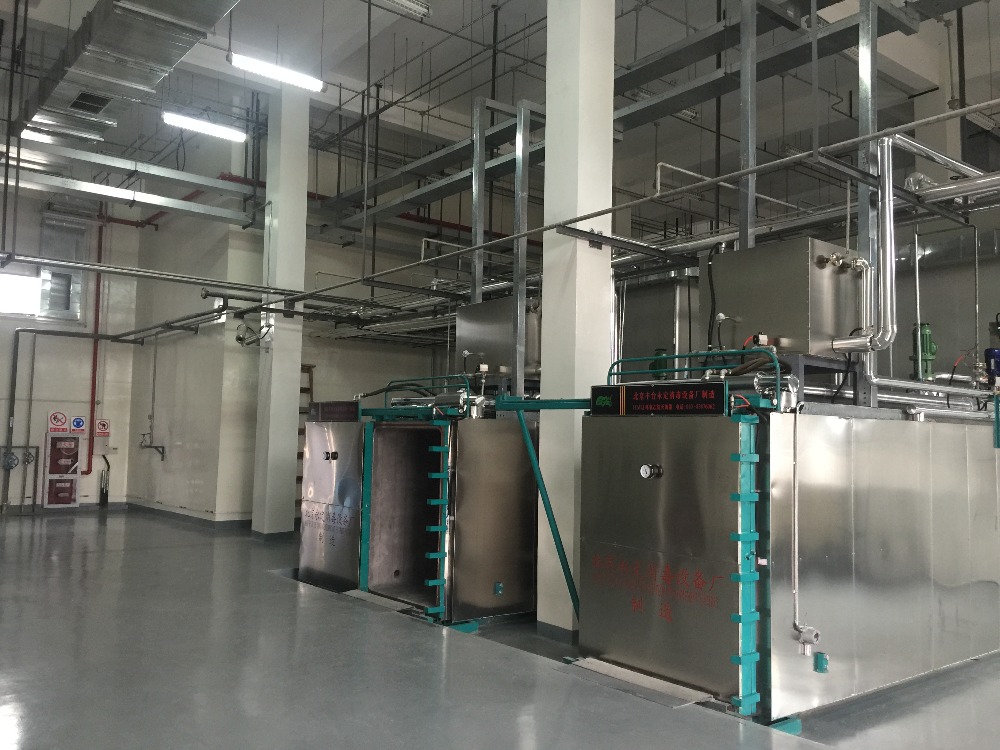

Factory tour
